HHPA (Hexahydrophthalic Anhydride) CAS 85-42-7 High Purity Epoxy Resin Curing Agent for Coatings & Electronics

Chemical Name: Hexahydrophthalic Anhydride
Abbreviation: HHPA
Other Names: 1,2-Cyclohexanedicarboxylic anhydride; Hexahydroisobenzofuran-1,3-dione
CAS No.: 85-42-7
EINECS No.: 201-604-9
Molecular Formula: C₈H₁₀O₃
Molecular Weight: 154.17
Availability:
Quantity:
  • HHPA

  • SINOBIO

  • 29172090

HHPA (Hexahydrophthalic Anhydride) CAS 85-42-7

High Purity Epoxy Resin Curing Agent for Coatings & Electronics



Hexahydrophthalic Anhydride (HHPA, CAS 85-42-7) is a high-performance saturated cyclic anhydride, specially designed as a premium curing agent for epoxy resins and a key intermediate for high-grade polymer synthesis. With a standard purity of ≥99%, it presents as white crystalline powder at room temperature and easily melts into a clear liquid at around 35ºC, distinguishing itself from unsaturated anhydrides (e.g., THPA) by its stable saturated molecular structure.


As a professional epoxy curing agent, HHPA endows cured epoxy systems with outstanding weather resistance—excellent anti-UV performance and low yellowing tendency, ensuring long-term durability even in harsh outdoor environments. It also features low shrinkage rate and superior chemical stability, making it the first choice for high-durability applications. What’s more, its low volatility, minimal VOC emissions, and broad compatibility with various resins and fillers make it widely favored in industries demanding long-term reliable performance, including automotive coatings, renewable energy equipment, marine coatings, and electronic encapsulation.


Our HHPA is produced with strict quality control, ensuring consistent batch performance, high purity, and compliance with international standards (RoHS, REACH). It offers excellent processability with low viscosity after melting, facilitating smooth production operations and reducing manufacturing costs for our global B2B clients. Whether for high-end coating projects or advanced polymer synthesis, HHPA delivers reliable performance and competitive advantages for your business.



Product Basic Information


Chemical Name: Hexahydrophthalic Anhydride
Abbreviation: HHPA
Other Names: 1,2-Cyclohexanedicarboxylic anhydride; Hexahydroisobenzofuran-1,3-dione
CAS No.: 85-42-7
EINECS No.: 201-604-9
Molecular Formula: C₈H₁₀O₃
Molecular Weight: 154.17



Product Applications


1. Epoxy Resin Curing Agent

Low melting point, low viscosity, long pot life (about 6 days). The cured product has excellent electrical properties, heat resistance (heat distortion temperature 110–130°C) and chemical corrosion resistance, used in electronic packaging, casting and composite materials.


2. High-performance Polyester/Alkyd Resins

No double bonds in the molecule, endowing the resin with excellent weather resistance, light resistance and heat resistance. Widely used in automotive coatings, powder coatings, coil coatings and amino polyester paints.


3. Special Coatings and Materials

Used as intermediates for artificial marble, insulating materials, adhesives, plasticizers and rust inhibitors.


4. Electronics and Semiconductors

Used in photoresists and resist inks to improve material insulation and reliability.

Item
Specification
Appearance

Colorless transparent viscous liquid at room temperature;

solidifies into white glassy solid at 35–36°C

Melting Point
32–34 °C
Boiling Point
158 °C / 17 mmHg
Density
1.18 g/cm³ (40°C)
Flash Point
>143 °C (closed cup)
Solubility
Soluble in acetone, ethanol, ethyl acetate, chloroform, carbon tetrachloride, benzene, toluene; slightly soluble in petroleum ether
Form
Solid/Liquid (depending on temperature)
Stability

Stable under normal conditions; moisture-sensitive,

hydrolyzes when exposed to water





1. Excellent Weather Resistance:

No aromatic double bonds, UV resistance, anti-yellowing, excellent outdoor durability.

2. Low Viscosity & Easy Operation:

Low melting point, good fluidity, excellent compatibility with resins, wide process window.

3. High-performance Cured Product:

High transparency, high insulation, low shrinkage, suitable for electronics and high-end coatings.

4. Compliant & Safe:

Meets mainstream international standards, supports RoHS, REACH and other compliance declarations.

5. Stable Supply

Supplied directly by large factories, good batch consistency, COA and SDS available.

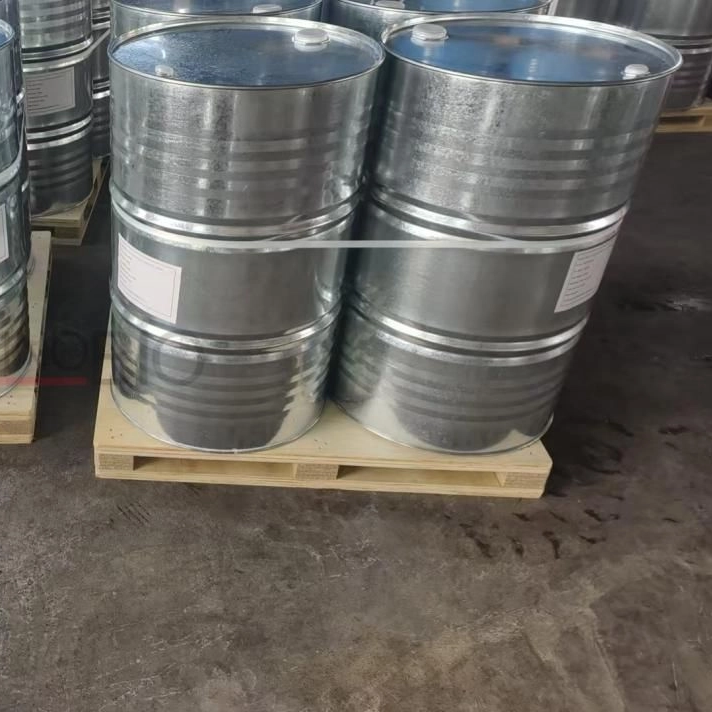

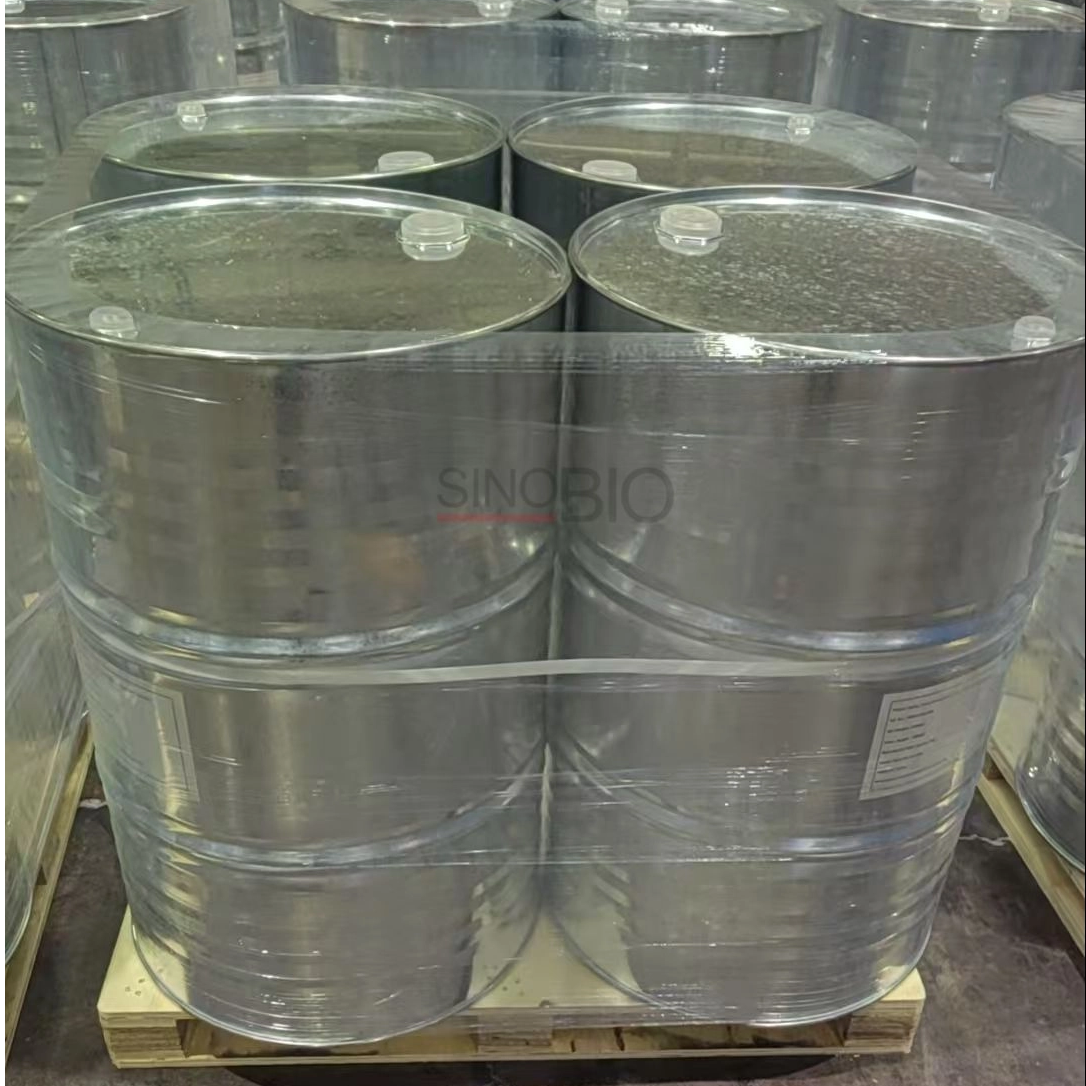

Packaging: 200 kg/drum

Delivery time: 7-15 working days after receiving deposit, or as per customer requirements.

HHPA (3)_1086_1086.png
HHPA (2)_712_712.png
